ZirChrom-SHAX
– 16 columns
Vendor: ZirChrom
ZirChrom®-SHAX columns offer today's chromatographer the following advantages:
- Efficient strong anion-exchanger useful for inorganic and organic anions. Stable from pH 1-12.
- Hydrophilic surface useful for the separation of bio-molecules such as nucleotides, nucleosides, oligonucleotides, oligodeonucleotides, amino acids, peptides and proteins.
- High anion-exchange capacity that can be controlled by the amount of polymer deposited on the porous zirconia substrate.
- Different selectivity than silica, polymeric or ZirChrom-WAX anion-exchangers.
- Does not shrink or swell as a function of anionic strength or organic modifier content of the mobile phase.
- Extremely stable amino phase for normal phase separation of carbohydrates.
- Thermally stable up to 80oC, which causes different selectivity and high speed separations with lower ionic strength mobile phases. This is very important in the preparation of RNA and DNA samples used for further studies.
- Mixed-mode separation modes may be exploited to optimize separations, including Lewis acid-base interactions, hydrophobic interactions and ion-exchange interactions. These modes may be attenuated by adjusting the strong Lewis base content, organic content and ionic strength of the mobile phase, respectively.

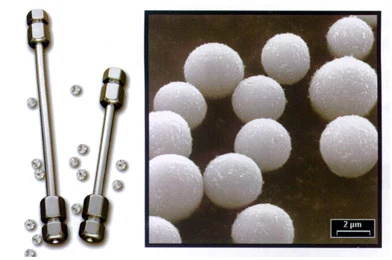

Select an image to enlarge and zoom.
Brand specifications
Every parameter recorded for every column in this Brand is shown here. A single value applies across the Brand; multiple values show what is recorded across its columns.
| Mode | Anion-Exchange | Operating Temperature | 80 |
|---|---|---|---|
| Modification | Zirconia/AX | pH stability from | 1.0 |
| Pore Size (Å) | 300 | pH stability to | 12.0 |
Choose column specifications
Available: 50 – 250 mm
Available: 2.1 – 4.6 mm
Available: 3 – 5 μm
Pore Size
Recorded value
300 Å
Columns in this brand
Use the selectors above to narrow the list by specification, or search here by P/N or any displayed value.
16 columns shown
| ZR07-0521 | 50 | 2.1 | 3.0 | 300 |
| ZR07-0521-5 | 50 | 2.1 | 5.0 | 300 |
| ZR07-0546 | 50 | 4.6 | 3.0 | 300 |
| ZR07-0546-5 | 50 | 4.6 | 5.0 | 300 |
| ZR07-1021 | 100 | 2.1 | 3.0 | 300 |
| ZR07-1021-5 | 100 | 2.1 | 5.0 | 300 |
| ZR07-1046 | 100 | 4.6 | 3.0 | 300 |
| ZR07-1046-5 | 100 | 4.6 | 5.0 | 300 |
| ZR07-1521 | 150 | 2.1 | 3.0 | 300 |
| ZR07-1521-5 | 150 | 2.1 | 5.0 | 300 |
| ZR07-1546 | 150 | 4.6 | 3.0 | 300 |
| ZR07-1546-5 | 150 | 4.6 | 5.0 | 300 |
| ZR07-2521 | 250 | 2.1 | 3.0 | 300 |
| ZR07-2521-5 | 250 | 2.1 | 5.0 | 300 |
| ZR07-2546 | 250 | 4.6 | 3.0 | 300 |
| ZR07-2546-5 | 250 | 4.6 | 5.0 | 300 |
