ACE AQ
– 141 columns
Vendor: ACE

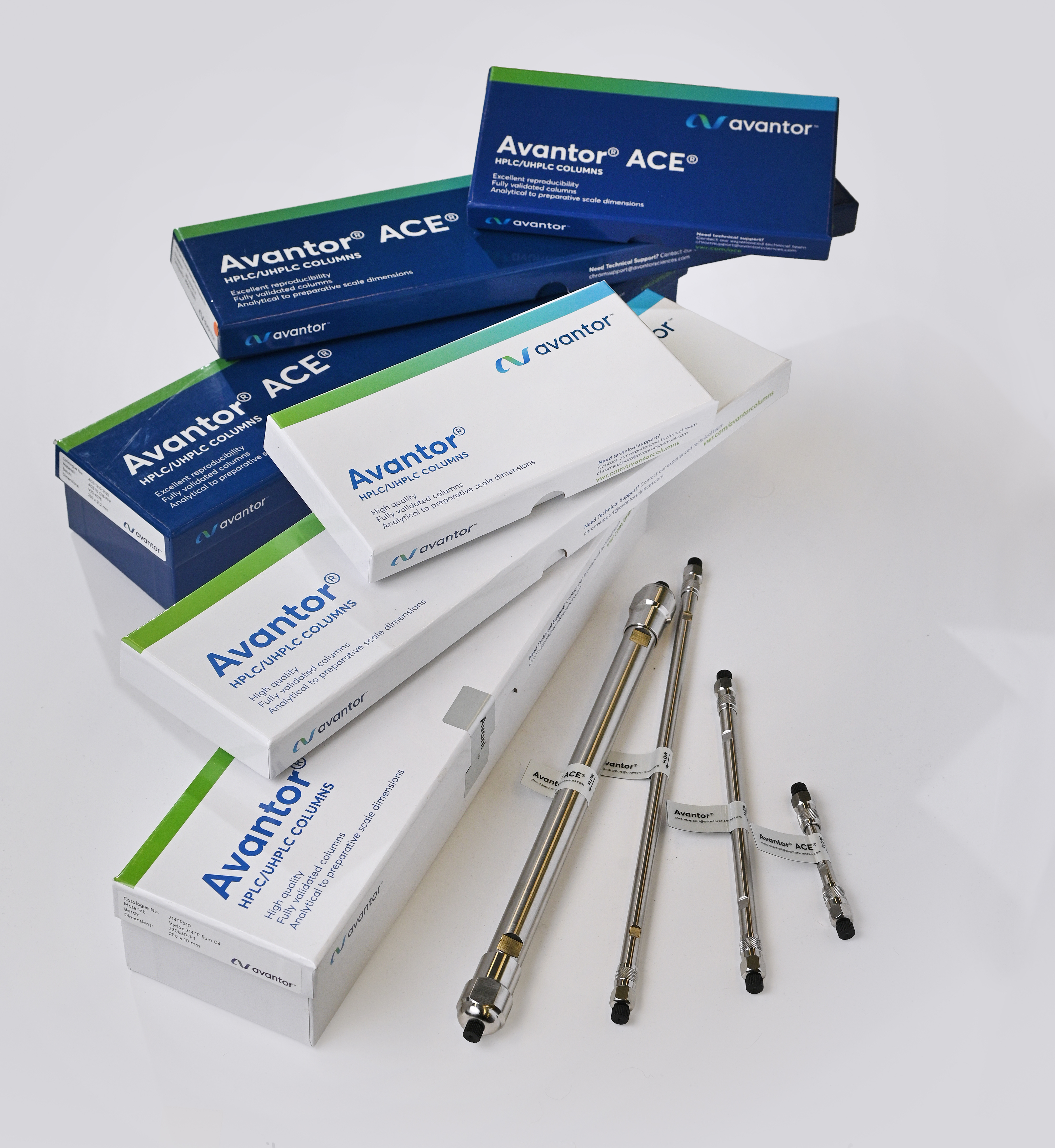

Avantor® ACE® AQ columns provide great reproducibility and column lifetime. These stainless steel columns are available in a wide range of particle sizes and dimensions from capillary to preparative.
- Ultra high purity, base deactivated silica with exceptional reproducibility
- Retains polar compounds in 100% aqueous mobile phase
- Unique C18 bonded phase with integral polar functionality
- Ideal for use with fast gradients due to its rapid re-equilibration properties and resistance to retention loss
- Wide range of particle sizes (2 µm to 10 µm) and complementary phases
- Method validation kits contain three different batches of the same phase - available on request
-
These columns are designed for a wide range of chromatographic applications, to provide great performance with acidic, basic and neutral molecules.
- Unmatched reproducibility
ACE AQ is an ultra-inert phase designed for the reversed phase separation of very polar compounds with up to 100% aqueous mobile phase. ACE AQ is ideal for use with fast gradients due to its rapid re-equilibration properties and resistance to retention loss.
Select an image to enlarge and zoom.
Brand specifications
Every parameter recorded for every column in this Brand is shown here. A single value applies across the Brand; multiple values show what is recorded across its columns.
| Mode | RP / Reversed-Phase | Endcapped | Yes |
|---|---|---|---|
| Modification | FPP / proprietary | Max Pressure | 275 / 4000 |
| Pore Size (Å) | 100 | pH stability from | 2 |
| Surface Area | 300 | pH stability to | 8 |
| Carbon Load, % | 14 |
Choose column specifications
Available: 20 – 300 mm
Available: 0.5 – 30 mm
Available: 3 – 10 μm
Pore Size
Recorded value
100 Å
Columns in this brand
Use the selectors above to narrow the list by specification, or search here by P/N or any displayed value.
141 columns shown
| ACE-116-0201 | 20 | 1 | 3 | 100 |
| ACE-116-0202 | 20 | 2.1 | 3 | 100 |
| ACE-116-0203 | 20 | 3 | 3 | 100 |
| ACE-116-0246 | 20 | 4.6 | 3 | 100 |
| ACE-116-03005 | 30 | 0.5 | 3 | 100 |
| ACE-116-0301 | 30 | 1 | 3 | 100 |
| ACE-116-0302 | 30 | 2.1 | 3 | 100 |
| ACE-116-0303 | 30 | 3 | 3 | 100 |
| ACE-116-0346 | 30 | 4.6 | 3 | 100 |
| ACE-116-0501 | 50 | 1 | 3 | 100 |
| ACE-116-0502 | 50 | 2.1 | 3 | 100 |
| ACE-116-0503 | 50 | 3 | 3 | 100 |
| ACE-116-0504 | 50 | 4 | 3 | 100 |
| ACE-116-0546 | 50 | 4.6 | 3 | 100 |
| ACE-116-10005 | 100 | 0.5 | 3 | 100 |
| ACE-116-1001 | 100 | 1 | 3 | 100 |
| ACE-116-1002 | 100 | 2.1 | 3 | 100 |
| ACE-116-1003 | 100 | 3 | 3 | 100 |
| ACE-116-1004 | 100 | 4 | 3 | 100 |
| ACE-116-1046 | 100 | 4.6 | 3 | 100 |
| ACE-116-1201 | 125 | 1 | 3 | 100 |
| ACE-116-1202 | 125 | 2.1 | 3 | 100 |
| ACE-116-1203 | 125 | 3 | 3 | 100 |
| ACE-116-1204 | 125 | 4 | 3 | 100 |
| ACE-116-1246 | 125 | 4.6 | 3 | 100 |
| ACE-116-15005 | 150 | 0.5 | 3 | 100 |
| ACE-116-1501 | 150 | 1 | 3 | 100 |
| ACE-116-1502 | 150 | 2.1 | 3 | 100 |
| ACE-116-1503 | 150 | 3 | 3 | 100 |
| ACE-116-1504 | 150 | 4 | 3 | 100 |
| ACE-116-1546 | 150 | 4.6 | 3 | 100 |
| ACE-116-3501 | 35 | 1 | 3 | 100 |
| ACE-116-3502 | 35 | 2.1 | 3 | 100 |
| ACE-116-3503 | 35 | 3 | 3 | 100 |
| ACE-116-3504 | 35 | 4 | 3 | 100 |
| ACE-116-3546 | 35 | 4.6 | 3 | 100 |
| ACE-116-7501 | 75 | 1 | 3 | 100 |
| ACE-116-7502 | 75 | 2.1 | 3 | 100 |
| ACE-116-7503 | 75 | 3 | 3 | 100 |
| ACE-116-7504 | 75 | 4 | 3 | 100 |
| ACE-116-7546 | 75 | 4.6 | 3 | 100 |
| ACE-126-0201 | 20 | 1 | 5 | 100 |
| ACE-126-0202 | 20 | 2.1 | 5 | 100 |
| ACE-126-0203 | 20 | 3 | 5 | 100 |
| ACE-126-0246 | 20 | 4.6 | 5 | 100 |
| ACE-126-0301 | 30 | 1 | 5 | 100 |
| ACE-126-0302 | 30 | 2.1 | 5 | 100 |
| ACE-126-0303 | 30 | 3 | 5 | 100 |
| ACE-126-0346 | 30 | 4.6 | 5 | 100 |
| ACE-126-0501 | 50 | 1 | 5 | 100 |
| ACE-126-0502 | 50 | 2.1 | 5 | 100 |
| ACE-126-0503 | 50 | 3 | 5 | 100 |
| ACE-126-0504 | 50 | 4 | 5 | 100 |
| ACE-126-0508 | 50 | 7.75 | 5 | 100 |
| ACE-126-0510 | 50 | 10 | 5 | 100 |
| ACE-126-0520 | 50 | 21.2 | 5 | 100 |
| ACE-126-0530 | 50 | 30 | 5 | 100 |
| ACE-126-0546 | 50 | 4.6 | 5 | 100 |
| ACE-126-1001 | 100 | 1 | 5 | 100 |
| ACE-126-1002 | 100 | 2.1 | 5 | 100 |
| ACE-126-1003 | 100 | 3 | 5 | 100 |
| ACE-126-1004 | 100 | 4 | 5 | 100 |
| ACE-126-1008 | 100 | 7.75 | 5 | 100 |
| ACE-126-1010 | 100 | 10 | 5 | 100 |
| ACE-126-1020 | 100 | 21.2 | 5 | 100 |
| ACE-126-1030 | 100 | 30 | 5 | 100 |
| ACE-126-1046 | 100 | 4.6 | 5 | 100 |
| ACE-126-1201 | 125 | 1 | 5 | 100 |
| ACE-126-1202 | 125 | 2.1 | 5 | 100 |
| ACE-126-1203 | 125 | 3 | 5 | 100 |
| ACE-126-1204 | 125 | 4 | 5 | 100 |
| ACE-126-1208 | 125 | 7.75 | 5 | 100 |
| ACE-126-1210 | 125 | 10 | 5 | 100 |
| ACE-126-1220 | 125 | 21.2 | 5 | 100 |
| ACE-126-1230 | 125 | 30 | 5 | 100 |
| ACE-126-1246 | 125 | 4.6 | 5 | 100 |
| ACE-126-1501 | 150 | 1 | 5 | 100 |
| ACE-126-1502 | 150 | 2.1 | 5 | 100 |
| ACE-126-1503 | 150 | 3 | 5 | 100 |
| ACE-126-1504 | 150 | 4 | 5 | 100 |
| ACE-126-1508 | 150 | 7.75 | 5 | 100 |
| ACE-126-1510 | 150 | 10 | 5 | 100 |
| ACE-126-1520 | 150 | 21.2 | 5 | 100 |
| ACE-126-1530 | 150 | 30 | 5 | 100 |
| ACE-126-1546 | 150 | 4.6 | 5 | 100 |
| ACE-126-2501 | 250 | 1 | 5 | 100 |
| ACE-126-2502 | 250 | 2.1 | 5 | 100 |
| ACE-126-2503 | 250 | 3 | 5 | 100 |
| ACE-126-2504 | 250 | 4 | 5 | 100 |
| ACE-126-2508 | 250 | 7.75 | 5 | 100 |
| ACE-126-2510 | 250 | 10 | 5 | 100 |
| ACE-126-2520 | 250 | 21.2 | 5 | 100 |
| ACE-126-2530 | 250 | 30 | 5 | 100 |
| ACE-126-2546 | 250 | 4.6 | 5 | 100 |
| ACE-126-3501 | 35 | 1 | 5 | 100 |
| ACE-126-3502 | 35 | 2.1 | 5 | 100 |
| ACE-126-3503 | 35 | 3 | 5 | 100 |
| ACE-126-3504 | 35 | 4 | 5 | 100 |
| ACE-126-3546 | 35 | 4.6 | 5 | 100 |
| ACE-126-7501 | 75 | 1 | 5 | 100 |
| ACE-126-7502 | 75 | 2.1 | 5 | 100 |
| ACE-126-7503 | 75 | 3 | 5 | 100 |
| ACE-126-7504 | 75 | 4 | 5 | 100 |
| ACE-126-7508 | 75 | 7.75 | 5 | 100 |
| ACE-126-7510 | 75 | 10 | 5 | 100 |
| ACE-126-7520 | 75 | 21.2 | 5 | 100 |
| ACE-126-7530 | 75 | 30 | 5 | 100 |
| ACE-126-7546 | 75 | 4.6 | 5 | 100 |
| ACE-136-0246 | 20 | 4.6 | 10 | 100 |
| ACE-136-0346 | 30 | 4.6 | 10 | 100 |
| ACE-136-0508 | 50 | 7.75 | 10 | 100 |
| ACE-136-0510 | 50 | 10 | 10 | 100 |
| ACE-136-0520 | 50 | 21.2 | 10 | 100 |
| ACE-136-0530 | 50 | 30 | 10 | 100 |
| ACE-136-0546 | 50 | 4.6 | 10 | 100 |
| ACE-136-1008 | 100 | 7.75 | 10 | 100 |
| ACE-136-1010 | 100 | 10 | 10 | 100 |
| ACE-136-1020 | 100 | 21.2 | 10 | 100 |
| ACE-136-1030 | 100 | 30 | 10 | 100 |
| ACE-136-1046 | 100 | 4.6 | 10 | 100 |
| ACE-136-1208 | 125 | 7.75 | 10 | 100 |
| ACE-136-1210 | 125 | 10 | 10 | 100 |
| ACE-136-1220 | 125 | 21.2 | 10 | 100 |
| ACE-136-1246 | 125 | 4.6 | 10 | 100 |
| ACE-136-1508 | 150 | 7.75 | 10 | 100 |
| ACE-136-1510 | 150 | 10 | 10 | 100 |
| ACE-136-1520 | 150 | 21.2 | 10 | 100 |
| ACE-136-1530 | 150 | 30 | 10 | 100 |
| ACE-136-1546 | 150 | 4.6 | 10 | 100 |
| ACE-136-2508 | 250 | 7.75 | 10 | 100 |
| ACE-136-2510 | 250 | 10 | 10 | 100 |
| ACE-136-2520 | 250 | 21.2 | 10 | 100 |
| ACE-136-2530 | 250 | 30 | 10 | 100 |
| ACE-136-2546 | 250 | 4.6 | 10 | 100 |
| ACE-136-3004 | 300 | 4 | 10 | 100 |
| ACE-136-3546 | 35 | 4.6 | 10 | 100 |
| ACE-136-7508 | 75 | 7.75 | 10 | 100 |
| ACE-136-7510 | 75 | 10 | 10 | 100 |
| ACE-136-7520 | 75 | 21.2 | 10 | 100 |
| ACE-136-7530 | 75 | 30 | 10 | 100 |
| ACE-136-7546 | 75 | 4.6 | 10 | 100 |
