ACE Excel C18-AR
– 57 columns
Vendor: ACE
The Avantor® ACE® Excel® C18-AR phase utilises a specially developed ligand combining a C18 chain with integral phenyl functionality, thus combining the benefits of both C18 and phenyl characteristics into a single phase. This can be used for ‘standard’ C18 column separations, but is additionally recommended for separations that involve compounds containing aromatic functionality.
- Ultra high purity, base deactivated silica with exceptional reproducibility
- Ideal for a wide range of analytes differing in hydrophobicity
- Wide range of particle sizes (1,7 to 5 µm) and complementary phases
- Ultra low bleed to ensure LC/MS compatibility
- Method validation kits contain three different batches of the same phase - available on request

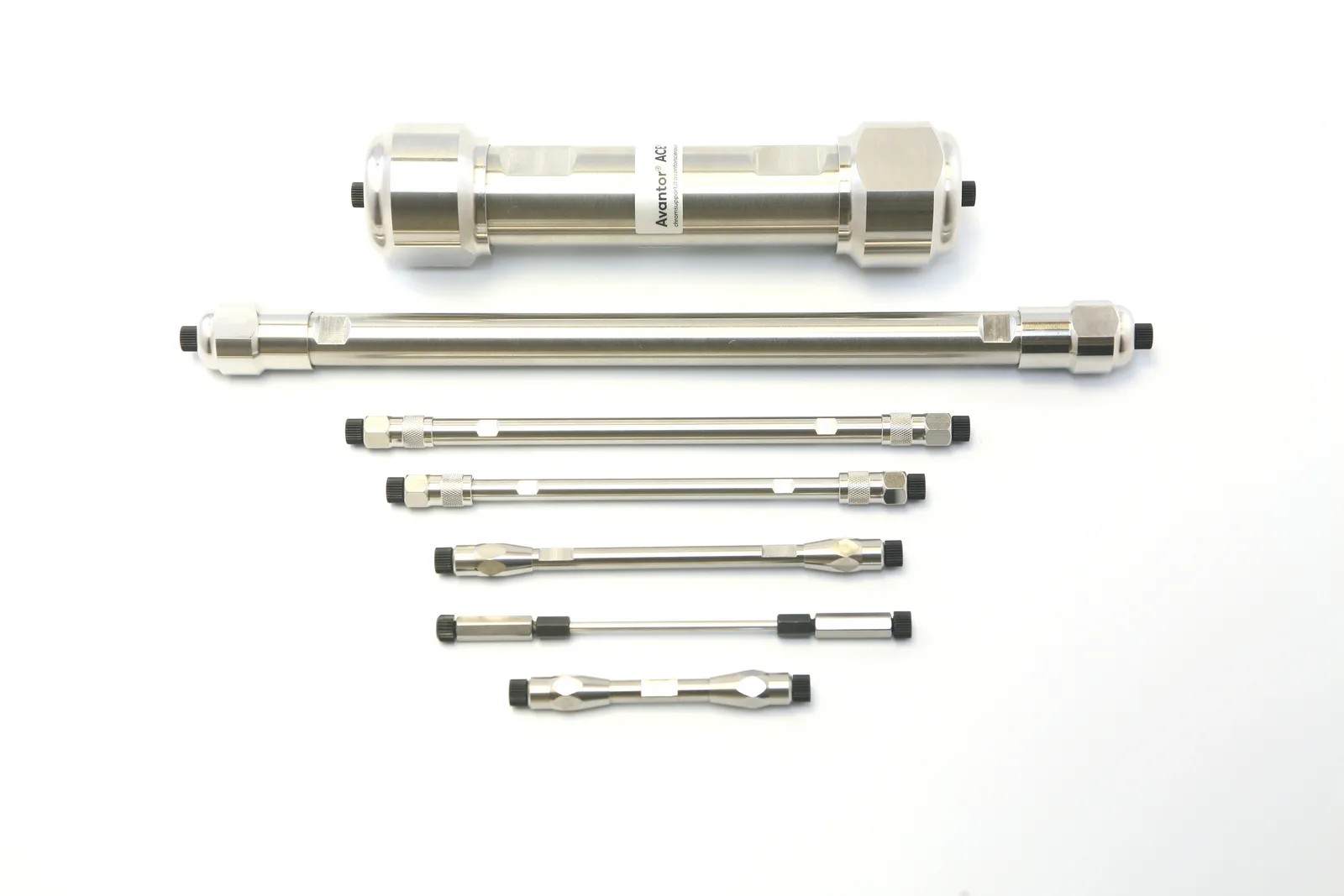

These columns are made from stainless steel.
Select an image to enlarge and zoom.
Brand specifications
Every parameter recorded for every column in this Brand is shown here. A single value applies across the Brand; multiple values show what is recorded across its columns.
| Mode | RP / Reversed-Phase | Endcapped | Yes |
|---|---|---|---|
| Modification | FPP / Silica/C18/Phenyl | Max Pressure | 1000 / 14500 |
| Pore Size (Å) | 100 | pH stability from | 2 |
| Surface Area | 300 | pH stability to | 8 |
| Carbon Load, % | 15.5 |
Choose column specifications
Available: 20 – 250 mm
Available: 2.1 – 4.6 mm
Available: 1.7 – 5 μm
Pore Size
Recorded value
100 Å
Columns in this brand
Use the selectors above to narrow the list by specification, or search here by P/N or any displayed value.
57 columns shown
| EXL-109-0202U | 20 | 2.1 | 2 | 100 |
| EXL-109-0203U | 20 | 3 | 2 | 100 |
| EXL-109-0246U | 20 | 4.6 | 2 | 100 |
| EXL-109-0302U | 30 | 2.1 | 2 | 100 |
| EXL-109-0303U | 30 | 3 | 2 | 100 |
| EXL-109-0346U | 30 | 4.6 | 2 | 100 |
| EXL-109-0502U | 50 | 2.1 | 2 | 100 |
| EXL-109-0503U | 50 | 3 | 2 | 100 |
| EXL-109-0546U | 50 | 4.6 | 2 | 100 |
| EXL-109-1002U | 100 | 2.1 | 2 | 100 |
| EXL-109-1003U | 100 | 3 | 2 | 100 |
| EXL-109-1046U | 100 | 4.6 | 2 | 100 |
| EXL-109-1202U | 125 | 2.1 | 2 | 100 |
| EXL-109-1203U | 125 | 3 | 2 | 100 |
| EXL-109-1246U | 125 | 4.6 | 2 | 100 |
| EXL-109-1502U | 150 | 2.1 | 2 | 100 |
| EXL-109-1503U | 150 | 3 | 2 | 100 |
| EXL-109-1546U | 150 | 4.6 | 2 | 100 |
| EXL-109-3502U | 35 | 2.1 | 2 | 100 |
| EXL-109-3503U | 35 | 3 | 2 | 100 |
| EXL-109-3546U | 35 | 4.6 | 2 | 100 |
| EXL-109-7502U | 75 | 2.1 | 2 | 100 |
| EXL-109-7503U | 75 | 3 | 2 | 100 |
| EXL-109-7546U | 75 | 4.6 | 2 | 100 |
| EXL-119-0246U | 20 | 4.6 | 3 | 100 |
| EXL-119-0346U | 30 | 4.6 | 3 | 100 |
| EXL-119-0502U | 50 | 2.1 | 3 | 100 |
| EXL-119-0503U | 50 | 3 | 3 | 100 |
| EXL-119-0546U | 50 | 4.6 | 3 | 100 |
| EXL-119-1002U | 100 | 2.1 | 3 | 100 |
| EXL-119-1003U | 100 | 3 | 3 | 100 |
| EXL-119-1046U | 100 | 4.6 | 3 | 100 |
| EXL-119-1203U | 125 | 3 | 3 | 100 |
| EXL-119-1246U | 125 | 4.6 | 3 | 100 |
| EXL-119-1502U | 150 | 2.1 | 3 | 100 |
| EXL-119-1503U | 150 | 3 | 3 | 100 |
| EXL-119-1546U | 150 | 4.6 | 3 | 100 |
| EXL-119-2502U | 250 | 2.1 | 3 | 100 |
| EXL-119-2546U | 250 | 4.6 | 3 | 100 |
| EXL-119-7502U | 75 | 2.1 | 3 | 100 |
| EXL-119-7503U | 75 | 3 | 3 | 100 |
| EXL-119-7546U | 75 | 4.6 | 3 | 100 |
| EXL-129-0502U | 50 | 2.1 | 5 | 100 |
| EXL-129-0546U | 50 | 4.6 | 5 | 100 |
| EXL-129-1002U | 100 | 2.1 | 5 | 100 |
| EXL-129-1046U | 100 | 4.6 | 5 | 100 |
| EXL-129-1502U | 150 | 2.1 | 5 | 100 |
| EXL-129-1503U | 150 | 3 | 5 | 100 |
| EXL-129-1546U | 150 | 4.6 | 5 | 100 |
| EXL-129-2502U | 250 | 2.1 | 5 | 100 |
| EXL-129-2503U | 250 | 3 | 5 | 100 |
| EXL-129-2546U | 250 | 4.6 | 5 | 100 |
| EXL-179-0202U | 20 | 2.1 | 1.7 | 100 |
| EXL-179-0302U | 30 | 2.1 | 1.7 | 100 |
| EXL-179-0502U | 50 | 2.1 | 1.7 | 100 |
| EXL-179-1002U | 100 | 2.1 | 1.7 | 100 |
| EXL-179-1003U | 100 | 3 | 1.7 | 100 |
