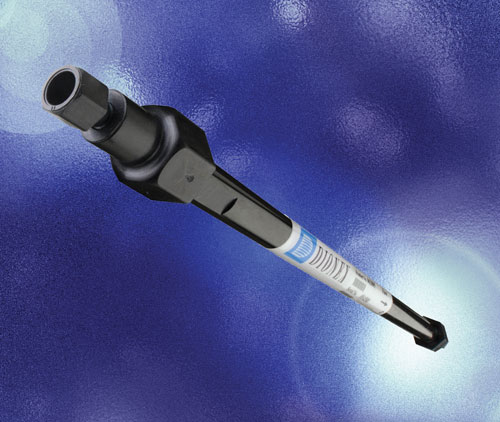

The DNAPac® PA100 is a high-resolution anion-exchange column that provides single-base resolution. It is stable under denaturing conditions, rugged, reliable, and can be readily scaled up. The DNAPac PA100 is a 13 μm pellicular, nonporous polymeric resin with bound quaternary amine-functionalized MicroBeads™. The rapid mass-transport characteristics of this resin result in very high-resolution oligonucleotide separations.

• Capable of n, n-1 resolution for oligonucleotides
• Resolves oligonucleotides with secondary structures
• Compatible with solvent, high pH, and high temperatures
• Analyzes phosphorothioate-based clinical samples
• Provides easy scale-up

The MicroBead resin used in DNAPac columns provides high-resolution separations to ensure maximum peak purity, and makes linear scale-up of your separation easy. For more complex separations, the polymeric properties of the DNAPac PA100 allows great flexibility to select ideal conditions, including high pH, high temperature, or chaotropic agents.

Synthetic oligonucleotides can be screened for production yield and failure sequences using the DNAPac PA100. Unit-base resolution of synthetic oligonucleotides to 60 bases and beyond has been demonstrated. The DNAPac PA100 can even be operated under denaturing conditions. Either high temperature (up to 90 °C) or high-pH eluents (up to pH 12.5) can be used to eliminate hydrogen bonding, allowing resolution of problem sequences such as self-complementary sequences or poly-G stretches.

The DNAPac PA100 is ideally suited for the purification and analysis of synthetic RNA. Failure sequences are easily separated from the full-length product. Double-stranded DNA, such as plasmids, or restriction fragments are also separated.
